5 Megapixels Automated Optical 3D Aoi Inspection Machine 220V 10 Cameras

Latest AI Cup Vision Inspection System with 10 Cameras

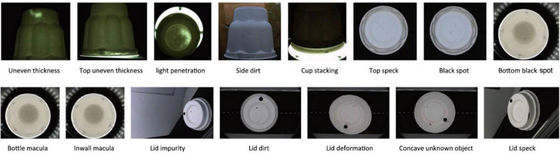

Cup vision inspection system can achieve rapid and accurate detection of appearance defects of cups through machine vision technology, thereby improving product quality. This technology combines light sources, lenses, cameras, and software algorithms to perform comprehensive detection of cups, including deformation of cup shoulders, multiple materials in cup bodies, broken cups, deformations, dents, etc., to ensure that cups meet quality standards and prevent defective products from entering the market. This is crucial for enhancing brand image and consumer satisfaction. Finally, visual inspection of cups can save time and manpower resources, reduce production costs and risks.

• The Latest advanced AI algorithm
• Modularization embedded processing unit
• Surging computing power NPU chip
• Cloud platform for remote operation&maintenance
• Self-developed hardware and software system
• High compatibility with various product kinds

  Inspection Theory

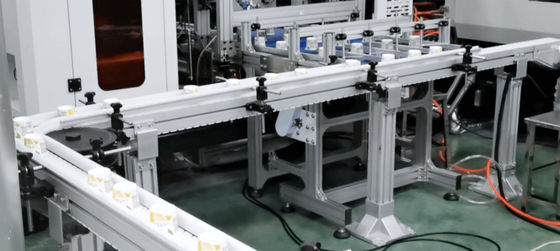

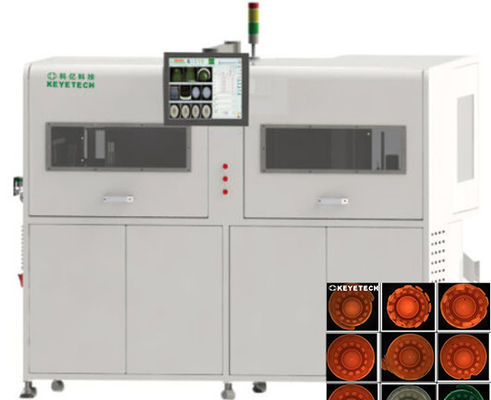

  The latest AI cup vision inspection system is a full automatic equipment for paper and plastic cup product appearance defect detection, the standard configuration of this vision inspection system is 10 industrial cameras for the full area inspection. The inspected product is stably and orderly transmitted to a specific workstation through a material handling (feeding) device, and the high pixel sample images captured are transmitted to image processing software through customized Led light sources and industrial cameras.






  The latest AI algorithms are analyzed and compared, and the system automatically determines “NG” and “OK” products. The corresponding pneumatic components are controlled to reject the defective products online, and the good products are counted and packaged directly, or transferred to the next production stage.






  The visualization control software will open up sample comparison standards, and production personnel at the customer’s site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate, the inspection data of certain period can be exported and download as an excel file, it is helpful to monitor the production efficiency and make the adjustment.
