Latest 6 Cameras Euro Cap AI Vision Inspection Machine AI Algorithms Deep Learning

Latest 6 Cameras Euro Cap AI Vision Inspection Machine AI Algorithms Deep Learning

Brand Name:	KeyeTech
Model Number:	KY-PC-06WI
MOQ:	1 SET
Price:	USD20000~USD50000
Payment Terms:	T/T
Supply Ability:	2000 Sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Inspection Speed:

Up To 10,000 Parts Per Minute

Inspection Method:

2D Or 3D

Data Output:

CSV Or Excel

Accuracy:

Higher Than 99.9%

Lighting Type:

LED Visible Light

Operating System:

Linux

Defect Detection:

Color, Shape, Size, And Position

Resolution:

0.2*0.2mm

Connectivity:

Ethernet Or USB

Image Processing:

Real-time

Camera Type:

High Resolution CMOS

Software:

User-friendly Interface

Packaging Details:

Export wooden case

Supply Ability:

2000 Sets Per Year

Product Description

Detection principle

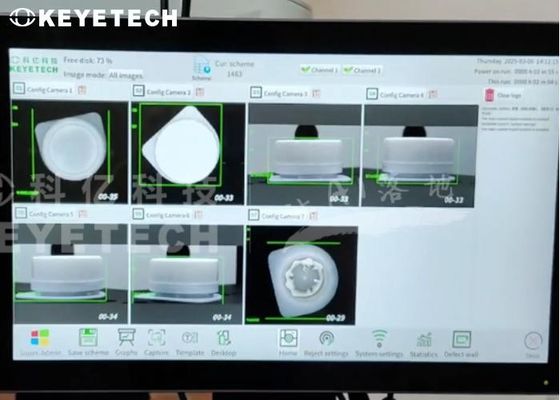

The caps defective product detection equipment is connected to the front-end automation mechanism (which can be directly connected to the conveyor line, waterfall capping machine, centrifugal turntable, etc., and the specific implementation method is to be determined according to the production site), and the caps can be stabilized. It is sequentially transmitted to a specific inspection station, and then the high-pixel sample image captured by the industrial camera is transmitted to the image processing software. The AI artificial intelligence algorithm detects and determines the good and bad products, and controls the corresponding pneumatic components to reject the bad products. , and finally output the qualified products, and the back-end conveying platform of the testing machine can be connected to the automatic packaging mechanism.

Product configuration

●High pixel industrial camera

●High resolution industrial lens

●High-brightness strobe light source

●Artificial intelligence (Al) algorithm

●High-performance GPU computing processing platform

●High-resolution industrial touch screen

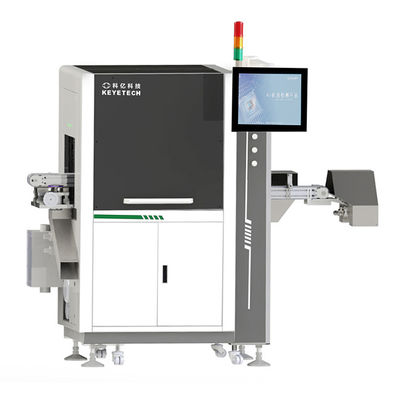

Equipment overview

➢ Online high-speed detection, improve detection efficiency and accuracy, and reduce labor costs.

➢ Accurate identification of high-pixel industrial cameras, the number of cameras is designed on demand, the accuracy is 0.1mm, and the speed is 2500 pieces/min (can be customized according to testing needs).

➢ Compatible with testing products of multiple specifications, saving costs.

➢ Detect and remove defects such as black spots, color difference, impurities, gaps, leftovers, flash, bubbles, voids, deformation, uneven thickness, size and other defects on caps.
