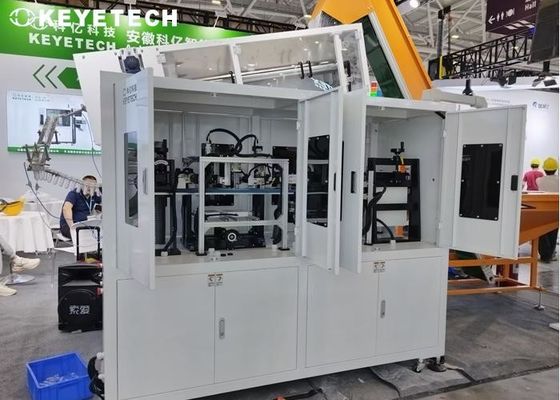

Full Automatic High Speed Plastic Preform Vision Inspection System Latest AI Algorithm

Brand Name:	KEYE
Model Number:	KY-P-C
MOQ:	1 SET
Price:	USD20000~USD50000
Payment Terms:	T/T Or F/C
Supply Ability:	1 Set Per 4 Weeks

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Detect Defects:

Color, Speck,impurity, Gap, Thread, Flash, Bubble, Hole...

Preision&Accuracy:

<0.1mm/99.5%

Detect Area:

Bottle Mouth, Mouth Inwall, Bottom, Body

Detection Speed:

Customized 100pcs/min - 300pcs/min

Dimension:

3550*1030*1800mm (L*W*H)

Weight:

About 350Kg

Packaging Details:

Fumigation-Free Wood

Supply Ability:

1 Set Per 4 Weeks

Highlight:

AI Algorithm preform Vision Inspection

Automatic Plastic Preform Vision Inspection

High Speed preform Vision Inspection

Product Description

Fully Automatic Plastic Preform Defect Inspection System Production Line

The Plastic Preform Defect Inspection System is the most important part in quality control of preforms. In a modern preform detection production line, it needs to include automatic dumper, preform storage system, lifting machine, embryo feeding machine, visual inspection machine, and conveyor line. Each preform manufacturer can choose personalized equipment configuration according to automation requirements, but visual inspection as the core machine is a must. The following is an introduction to our company’s latest preform inspection system.

Inspection Theory

Plastic Preform Defect Inspection System is a fully automatic equipment for product appearance defect detection, which adopt the latest KVIS-V16.0 AI vision system, the inspected product is stably and orderly transmitted to a specific workstation through a material handling (feeding) device, and the high pixel sample images captured are transmitted to image processing software through customized Led light sources and industrial cameras.

AI inspection system is analyzed and compared, and the system automatically determines “NG” and “OK” products. The corresponding pneumatic components are controlled to reject the defective products online, and the good products are counted and packaged directly, or transferred to the next production stage.

The software will open up sample comparison standards, and production personnel at the customer’s site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate.

Main characters

The Latest advanced AI algorithm
Modularization embedded processing unit
Surging computing power NPU chip
Cloud platform for remote operation&maintenance
Self-developed hardware and software system
High compatibility with various product kinds
