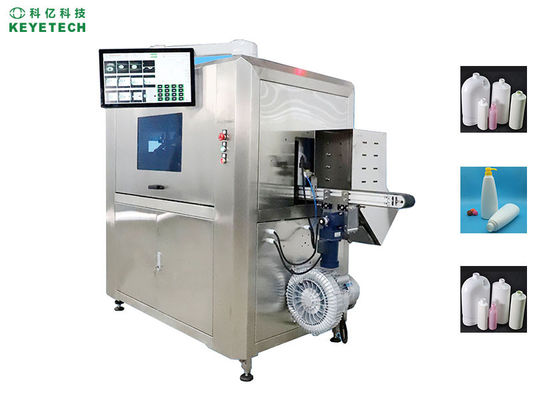

Customized Household Chemical Product PE Bottle Vision Inspection System with AI Deep Learning

Customized Household Chemical Product Bottle Vision Inspection System

KeyeTech AI technology PE bottle vision inspection system is online high-speed detection for bottle mouth, bottle shoulder, bottle inner bottom, bottle outer bottom, and bottle sidewall. AI system control software improve the detection efficiency and accuracy, and reduce labor costs. The machine adopt high pixel industrial cameras for precise recognition, with on-demand camera quantity design, accuracy of 0.15mm. The inspection speed reach to 300 per minute (The inspection speed is customizable according to customer's detection needs).

Compatible with testing multiple specifications of products, saving costs. This AI vision inspection system detect bottle defects such as black spots, color differences, impurities, threads, lifting rings, notches, residues, burrs, bubbles, voids, deformations, uneven thickness, and dimensions on the bottle body online, it will remove the defected product automatically online.

High pixel industrial cameras
High resolution industrial lenses
High brightness LED strobe light source
Artificial intelligence (Al) algorithm
High performance GPU computing processing unit
High resolution industrial touch screen
Customizable visual inspection solutions

FAQ

A: Usually the defects that can be seen by eyes are able to be inspected, impurity, bubble, gap, burr, flashing, deformation...

Q: How many defects can be detected by one machine?

A: The quantity of defects is unlimited, it's depended on customer's detection request.

Q: How many cameras are equipped in the machine?

A: Our standard is 6pcs cameras, the exact camera quantity is up to detected defect kinds and positions, the more kinds the more quantity.

Q: What's the definition of the camera?

A: The definition of the camera and lens are depended on your defected precision, i.e, the definition is different if the defected precision is 0.2mm and 0.5mm.

Q: If the camera is self-developed or buy from the professional camera producers?

A: Most of the cameras are designed and developed by ourselves, especially the inspection system is AI algorithm, the camera must match the AI system.

Q: Is the cameras are the most important for the inspection?

A: Camera is one of the most important hardwares of the equipment, the AI algorithm software system is the key technology for the machine.

Q: How to solve installation and adjustment?

A: We will send our skilled engineers to you for installation and adjustment, it takes around one week.

Q: Is difficult to use your machine, how to train our people?

A: Yes, the machine system is sophisticated, but the control for you is easy. We can train your people online via KeyeTech AI platform which is very convenient, and you can also send your technician to our company to learn, it's free.

Q: What's your machine's guarantee? Can you supply the spare parts in the future?

A: We supply the one year warranty for our entire machine, 3 years warranty for hardware like the camera, lens, sensor, (If damaged by personal improper use customer need to purchase from us). We are responsible for the spare parts and maintenance for long time.

Q: What's detailed information i need to supply to get a quote?

A: Customers need to supply some exact answers to us for a quote:

How many different bottles in total to be inspected?
What's color and size of the bottle? (need samples or drawing)
How many different defects need to be detected?(need samples or drawing)
Inspect for target position or 360° full positions?
What's the request of the inspection speed?
Any special requirement for inspection precision?
The above are part of the questions we need to discuss before the quote, for a exact quote we also need physical defect samples.
