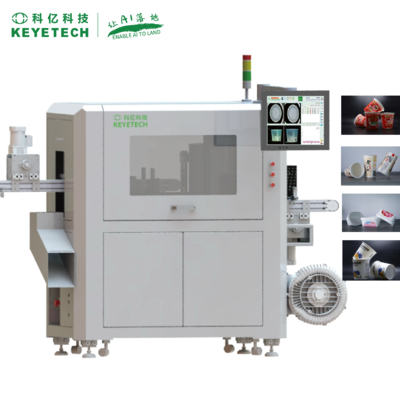

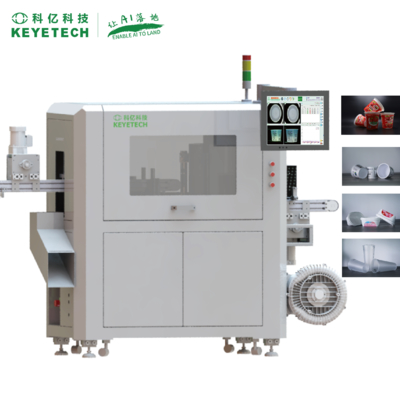

AI Vision Inspection Machine with 0.1mm Precision and 99.9% Accuracy for 360° Detection in IML Products

name

AI Vision Inspection Machine with 0.1mm Precision and 99.9% Accuracy for 360° Detection in IML Products

Brand Name: KEYE
Model Number: KVIS-B-CC
MOQ: 1 SET
Price: USD20000~USD50000
Payment Terms: T/T Or F/C
Supply Ability: 1 Set Per 4 Weeks
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO/CE
Detect Defects:
Bad Labelling, Black Spot, Impurity, Gap, Flash, Hole...
Preision&Accuracy:
<0.1mm/99.5%
Detect Area:
Labels On The Cup Body, Mouth, Bottom, Inner Wall...
Detection Speed:
Customized 150pcs/min-300pcs/min
Dimension:
2058*1710mm*1567mm (L*W*H)
Weight:
About 260Kg
Packaging Details:
Fumigation-Free Wood
Supply Ability:
1 Set Per 4 Weeks
Highlight:

0.1mm Precision Vision Inspection Machine

,

99.9% Accuracy AI Vision Inspection System

,

360° Detection IML Vision Inspection Machine

Product Description
KEYE AI Vision Inspection Machine for Packaging Label Printing Quality Control
The IML Products AI vision inspection machine utilizes image acquisition, processing, annotation, AI algorithm models, and software scheduling to inspect apparent defects in IML products across industries including food, dairy, beverage, and more. It instantly rejects defective products from the production line and counts good products for box division.
Product Parameters
Parameter Specification
Inspection Defects Deformation, black spots, impurities, gaps, flash, holes, notch, poor labeling (punching, bubbles, wrinkles, crooked, oblique, dislocation, missing, reverse), etc.
Detection Area 360°, including labels on the cup body, cup mouth, cup inner wall, cup outer bottom
Voltage and current Adapt to national standard
Compressed air 0.5Mpa - 0.8Mpa
Speed 300pcs/min
Precision 0.1 mm
Size 1277*670*1634mm
Power 3000 - 6000w
Accuracy 99.9%
Weight 260kg
Applications
IML cup/Label print - in-mold labeling for food, dairy products, beverages, etc.
Defects Detection Capabilities
Printing Inspection
  • Missing characters
  • Printing ghosting
  • Color difference
  • Ink splash
Performance: 60-70pcs/min | 0.1mm Precision | 99.9% Accuracy
Label Inspection
  • Missing labels
  • Wrinkling
  • Black spots
  • Dirt
  • Broken labels
  • Faulty QR codes/barcodes
  • Extra labels
  • Trapped labels
  • Labeling errors
  • In-mold labeling issues
Performance: 300pcs/min | 0.1mm Precision | 99.9% Accuracy
