Latest AI Algorithms Full Automatic Visual Inspection Machine for Plastic Bottles Containers

Latest AI Algorithms Full Automatic Visual Inspection Machine for Plastic Bottles Containers

Brand Name:	KEYE
Model Number:	KY-GB-C8
MOQ:	1 SET
Price:	USD20000~USD50000
Payment Terms:	T/T Or F/C
Supply Ability:	1 Set Per 4 Weeks

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO/CE

Inspection Speed:

300pcs/min (Customized)

Preision & Accuracy:

<0.1mm/99.5%

Detect Area:

360° Full Area (Customized)

Detect Defects:

Color, Speck,impurity, Gap, Thread, Flash, Bubble, Hole...

Detection Method:

Inline/offline

Weight:

About 350kg

Packaging Details:

Fumigation-Free Wood

Supply Ability:

1 Set Per 4 Weeks

Product Description

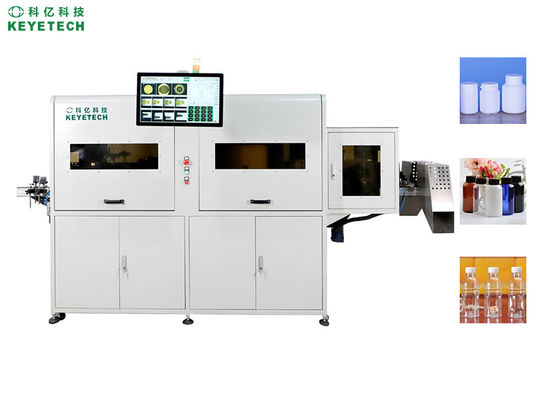

Full Automatic Bottle Inspection Machine

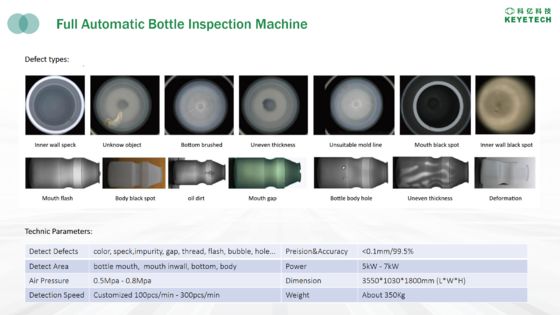

Detect and remove defects such as black spots, color differences, impurities, threads, rings, notches, residues, burrs, bubbles, flashes, deformations, uneven thickness, and dimensions on the bottle body online.

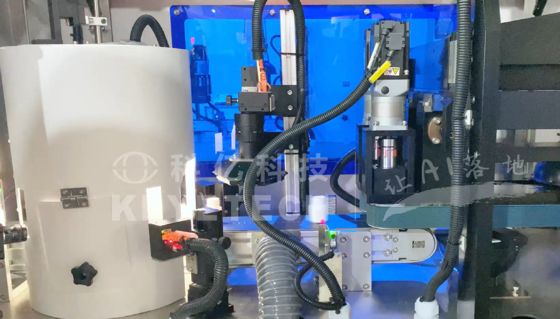

Inspection Theory

The product is stably and orderly transmitted to a specific workstation through a material handling (feeding) device, and the high pixel sample images captured are transmitted to image processing software through customized LED light sources and HID industrial cameras. Based on big data, AI algorithms are analyzed and compared, and the system automatically determines defective and good products. The corresponding pneumatic components are controlled to eliminate defective products online, and the good products are counted and boxed to complete product inspection.
The software will open up sample comparison standards, and production personnel at the customer's site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate.
